The Role of Static Pressure Testing Before Installing a Larger Furnace

The "Bigger is Better" Furnace Myth

It is a common misconception that upgrading to the largest possible heating capacity is the ultimate strategy to combat freezing temperatures. You might assume that a massive unit will quickly blast away the chill and keep your home cozy, but the reality of HVAC physics tells a very different story. If you are considering a system upgrade this season, the role of static pressure testing before installing a larger furnace cannot be overstated. Without evaluating the existing ductwork first, forcing a massive volume of air through narrow channels can lead to catastrophic mechanical failure.

The critical decision point for any homeowner is whether to blindly accept a quote for a massive unit or insist on a proper diagnostic evaluation. Many homeowners fall into the trap of treating a furnace replacement like buying a larger space heater, completely ignoring the distribution system that delivers the air. As we enter the September pre-heating season, now is the ideal time to evaluate these systems before emergency replacements are required. Rushing into an installation without understanding your home's airflow limitations is a recipe for disaster. For comprehensive heating services, starting with accurate diagnostics is the only reliable way to protect your investment and ensure long-term comfort.

Understanding Static Pressure and Airflow Physics

To understand why upsizing a furnace can be dangerous, it is necessary to first understand how air moves through a home. Static pressure is the measure of resistance to airflow within the HVAC duct system. Just as blood pressure measures the resistance your heart pushes against in your arteries, static pressure measures the resistance your furnace blower motor pushes against inside your ductwork.

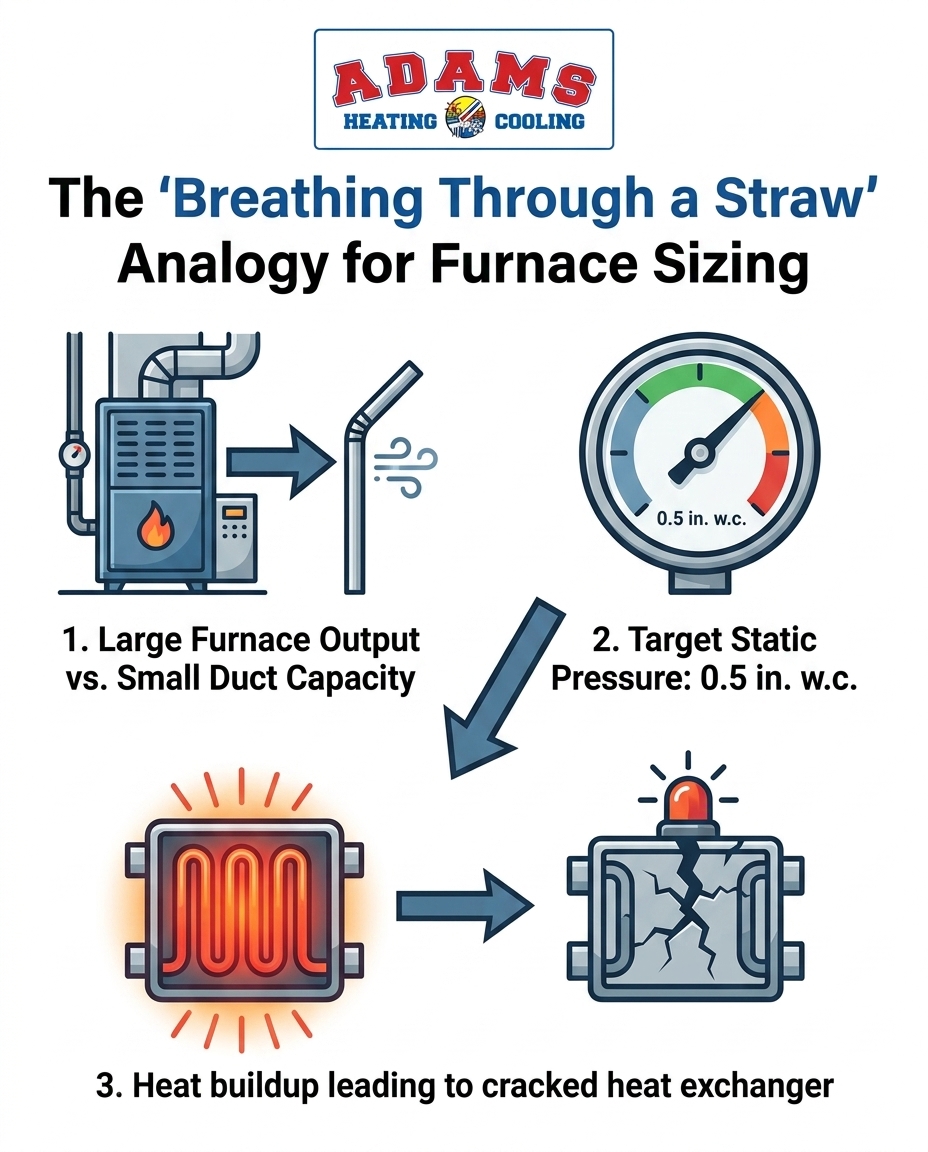

The "Breathing Through a Straw" Analogy

Think of your furnace as a powerful set of lungs, and your ductwork as a drinking straw. If you take a deep breath and try to exhale all that air rapidly through a tiny cocktail straw, you will feel immense pressure build up in your cheeks and throat. The air simply cannot escape fast enough. The exact same physical principle applies to a large furnace attached to undersized ducts. A massive blower motor cannot efficiently push a high volume of air through restrictive channels without creating severe backpressure inside the equipment cabinet.

Professionals do not guess when it comes to this resistance; they measure it precisely. In the HVAC industry, this resistance is calculated using a specific measurement. Static pressure is measured in inches of water column (in. w.c.), which represents the amount of pressure required to push a column of water up by one inch. A standard residential heating system is typically designed by engineers for a maximum total external static pressure of 0.5 in. w.c. When the pressure exceeds this threshold, the system is forced to operate outside of its designed safety parameters, leading to a cascade of mechanical issues.

Why Upsizing a Furnace on Old Ductwork is Dangerous

When a homeowner insists on a larger furnace without expanding the ductwork, the immediate result is excessive static pressure. Because the massive volume of heated air has nowhere to go, it becomes trapped inside the furnace cabinet. This causes the internal temperature of the unit to spike rapidly, leading the furnace to overheat within minutes of turning on.

To prevent a fire, modern furnaces are equipped with a high limit safety switch. When the internal temperature exceeds a safe threshold, this switch automatically shuts down the burners while leaving the fan running to cool the system. Once cooled, the furnace fires back up, only to overheat and shut down again. This rapid on-and-off cycle is known as short-cycling. Not only does short-cycling ruin energy efficiency, but the continuous thermal expansion and contraction severely stress the metal components.

Over time, this stress leads to the most dangerous failure in a heating system: a cracked heat exchanger. A compromised heat exchanger allows combustion gases, including carbon monoxide, to mix with the air being blown into the living space. This is a severe safety hazard that often necessitates an immediate, complete system replacement. One local homeowner discovered this the hard way last fall during a routine maintenance check while it was snowing outside. A severe crack was found in their heat exchanger, requiring a completely new furnace to be scheduled and installed within a week to restore safe heating.

This dynamic is especially critical in our region. Kalamazoo winters require heating systems to run continuously for months at a time. An oversized furnace operating on restrictive ductwork will inevitably overheat and fail under this heavy regional workload. If you are planning an HVAC system upgrade, understanding the relationship between mechanical causes and system consequences is vital.

• Short-Cycling — The Mechanical Cause: Trapped heat trips the high limit safety switch repeatedly. — The Ultimate Solution: Properly size the furnace to match duct capacity.

• Blower Motor Burnout — The Mechanical Cause: Motor overworks against high static pressure resistance. — The Ultimate Solution: Expand ductwork or add return air drops.

• Cracked Heat Exchanger — The Mechanical Cause: Continuous thermal stress from overheating metal. — The Ultimate Solution: Replace system and correct underlying airflow issues.

The Static Pressure Test: A Mandatory Safety Checkpoint

Because the consequences of poor airflow are so severe, a static pressure test is a highly technical diagnostic procedure that serves as a mandatory safety checkpoint. Ethical, safety-first contractors refuse to blindly install a larger furnace and take a customer's money without first proving the ductwork can handle the airflow. This is not a DIY task; it requires specialized training and precision instruments.

Another customer reached out last fall when their heater stopped working entirely, leaving them in a tough spot as temperatures dropped. Despite a busy schedule, a technician arrived, correctly diagnosed the underlying airflow restriction causing the failure, and explained the physics clearly so the homeowner understood exactly why the breakdown occurred. Thanks to thorough diagnostics, they had a safely working furnace in very short order.

Here is how professionals conduct this critical evaluation:

1. Establishing Test Ports: Technicians carefully drill small test holes into the ductwork—one on the supply side (after the furnace) and one on the return side (before the blower).

2. Using a Manometer: A specialized digital or analog tool called a manometer is connected to these ports using static pressure tips. This sensitive instrument measures the exact air resistance in the system.

3. Calculating Total External Static Pressure: The technician takes the pressure reading from the supply side and adds it to the pressure reading from the return side (ignoring negative signs) to find the total external static pressure.

4. Comparing to Manufacturer Specifications: This final number is compared to the furnace's data plate. If the number exceeds the manufacturer's maximum rating (often 0.5 in. w.c.), the system is restricted.

This concrete data dictates the next steps. It removes all the guesswork, revealing exactly how much airflow the current ductwork can safely handle and determining whether a larger furnace can be safely installed or if modifications are required first.

Recognizing the Warning Signs of High Static Pressure

Even if you are not currently shopping for a new furnace, your existing system might already be struggling with restrictive ductwork. High static pressure leaves distinct clues throughout the house. Recognizing these symptoms early can help you address airflow issues before they cause permanent damage to your equipment.

Watch for these common warning signs:

• Unusually loud or whistling noises: If your supply vents or return grilles sound like a wind tunnel, the blower motor is forcing air through spaces that are too small to handle the volume quietly.

• Hot and cold spots throughout the house: Uneven air distribution is a classic symptom of poor airflow. The system cannot push enough conditioned air to the furthest reaches of the home.

• The furnace shutting off prematurely: If the heating cycle ends before the home actually reaches the set temperature on your thermostat, the system is likely short-cycling due to internal heat buildup.

• Higher than expected energy bills: When a blower motor has to fight against high static pressure, it consumes significantly more electricity to do its job, driving up utility costs.

If you notice several of these symptoms occurring simultaneously, it is a strong indicator that your ductwork is bottlenecking your system's performance. Addressing these restrictions is often the key to fixing unexpected temperature fluctuations and restoring consistent comfort across every room.

What Happens if Your Ducts Fail the Test?

If a professional manometer test reveals that your ductwork cannot support the airflow of a larger furnace, you are not out of options. In fact, discovering this limitation before installation saves you from a costly and dangerous mistake. HVAC professionals have several actionable solutions to ensure your home stays warm without compromising safety.

Installing the Correctly Sized Furnace

The most common and effective solution is simply sizing the furnace to match the ductwork's actual capacity, rather than upsizing based on square footage alone. A properly sized furnace running longer, steadier cycles will heat a home much more comfortably and evenly than an oversized unit that short-cycles constantly.

Modifying the Ductwork

If a larger capacity is truly necessary to meet the heating load of the home, the existing ductwork must be modified. This might involve widening the main supply trunk line or expanding branch ducts to reduce resistance and accommodate the increased volume of air.

Adding Return Air Drops

A heating system needs to pull in just as much air as it pushes out. Often, high static pressure is caused by an undersized return air system. Adding additional return air drops or widening the existing return drop can immediately alleviate pressure on the blower motor, allowing the system to "breathe" easier.

Upgrading to Variable-Speed Equipment

Modern variable-speed equipment can adjust airflow dynamically. While a variable-speed motor will still struggle against severely undersized ducts, it can often compensate for minor static pressure issues much better than a traditional single-stage motor. Regular check-ups through a preventative maintenance plan will ensure that these advanced motors continue to operate within safe parameters year after year.

Frequently Asked Questions About Furnace Sizing and Airflow

Can you put a bigger furnace on existing ductwork?

You can only install a bigger furnace if a static pressure test proves the existing ducts can handle the increased cubic feet per minute (CFM) of airflow. If the ductwork is too narrow, the larger volume of air will create massive resistance. This backpressure traps heat inside the cabinet, causing the new furnace to overheat, short-cycle, and potentially suffer a cracked heat exchanger.

What happens if static pressure is too high on a furnace?

When static pressure is too high, the system works much harder to push air through the home. This excessive strain often causes the blower motor to burn out prematurely and trips the high limit safety switch due to trapped heat. Over time, the continuous overheating and rapid cycling severely stress the metal components, greatly increasing the risk of a cracked heat exchanger.

What is a good static pressure for a residential furnace?

Most standard residential heating systems are designed by manufacturers to operate ideally at or below 0.5 inches of water column (in. w.c.) total external static pressure. While some modern high-efficiency systems are rated to handle slightly higher pressures, keeping the resistance near the 0.5 threshold ensures optimal efficiency, quieter operation, and a longer lifespan for the equipment.

How do HVAC professionals fix high static pressure?

Professionals fix high static pressure by addressing the specific bottlenecks restricting airflow in the system. Common solutions include cleaning a dirty evaporator coil, widening the main supply or return ductwork, or adding additional return air drops to pull more air into the system. Sometimes, the fix is as simple as replacing a highly restrictive, densely pleated air filter with a standard filter that allows air to flow freely.

Why does a brand new furnace keep tripping the high limit switch?

A new furnace tripping the high limit switch is often a classic sign that the unit was installed on undersized ductwork. Because the ducts cannot accommodate the volume of air the new blower is producing, heat builds up rapidly inside the cabinet. The safety switch detects this dangerous temperature spike and shuts the system down to prevent a fire or permanent damage to the heat exchanger.

Make an Informed Decision for Your Winter Comfort

Understanding the role of static pressure testing is crucial for protecting your next major heating investment. The belief that a bigger unit automatically equals a warmer home is a myth that can lead to dangerous mechanical failures, expensive repairs, and compromised safety. A properly sized system operating on adequate ductwork will provide reliable, safe, and even heat all winter long, without straining the blower motor or risking a cracked heat exchanger.

Before you commit to an upgrade, insist on thorough diagnostics. Gathering the right data ensures that your system operates safely within its design limits. We encourage readers to consult with professionals who prioritize safety and refuse to skip vital testing steps. When you are ready to explore a new furnace installation, making an informed decision based on actual airflow data will guarantee your family's comfort and peace of mind through the harshest freezing months.
